Introduction

A famous shutters manufacturer in Malaysia in an unrivalled position for developing new technology to meet the needs of today’s construction industry.prs R&D engineers have developed high quality roller shutters doors to assists architects & consultants to design a more durable, reliable doors for the projects

STANDARD SPECIFICATIONS:

FOR LIGHT & HEAVY DUTY SHUTTERS

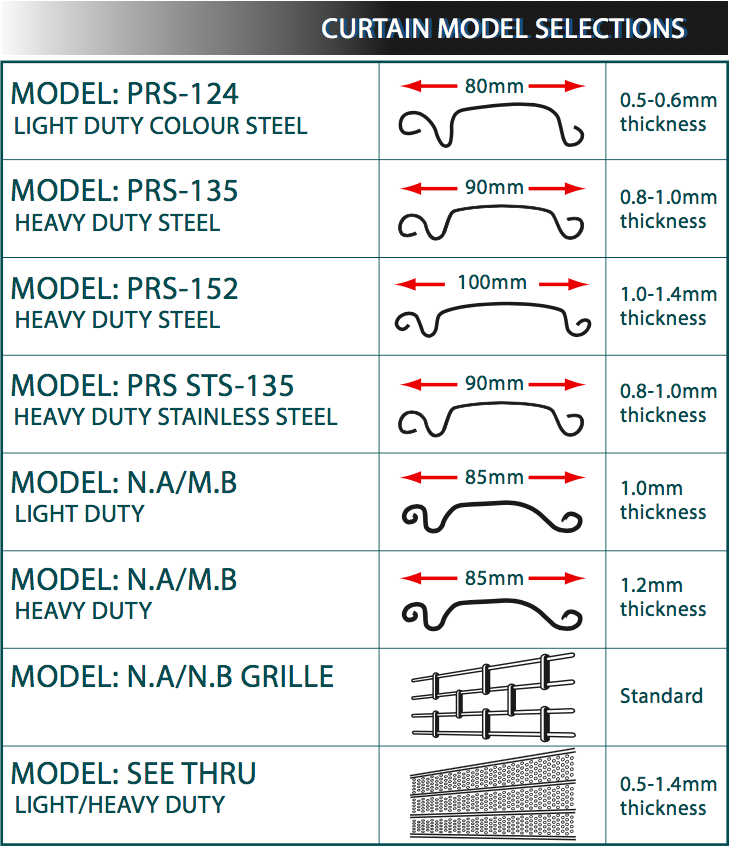

  1. SHUTTERS CURTAINS:

Roll from rst grade high tensile galvanised or pre-coated colour steel

with carefully design interlocking groove, advance design auto cut-o edge endlock to achieve maximum holding strength to each interlocking lath. For LIGHT DUTY shutters available on 0.5mm and middle weight

0.7-0.8mm thickness.

For HEAVY DUTY shutter available on 1.0mm, 1.1mm & 1.2mm thickness. For LIGHT & HEAVY DUTY ALUMINIUM SHUTTERS are of extruded

sections available of 1.0mm, 1.2mm & 1.4mm thickness.

  1. BOTTOM BAR:

Roll formed from high tensile steel of minimum 1.2mm thickness to the shape of single angle design with mitred edge.

(optional for additional angle upon request.)

For Aluminium Shutters: Extruded Aluminium T-section.

  1. SIDE GUIDE RAILS:
  2. For LIGHT DUTY shutters – Roll formed steel U-shape section of 38x25x1.2mm with mitred edge.
  3. For HEAVY DUTY shutters – Fabricate from high tensile steel of minimum thickness of 1.6mm with a groove of 75mm depth or roll from guide design PRS-G TYPE STEEL GUIDE with 75mm depth groove.
  4. SHUTTERS ENCLOSER BOX:

Fabricate from hollow steel section with G.I, G.I colour or Zincalume cover

to be painted with one coat of anti rust primer to factory standard.

  1. OPERATION CONTROL TYPE:
  2. MOTORISED TYPE WITH GEAR REDUCTION SPEED CONTROL:

Each motor shall equip with auto brake release level, limit switches, built-in thermal protector, manual chain override with endless chains, one unit of 3 way push button switch with keys as standard.

Motor operation of shutter at 3 to 5 meter per minute.

power source: 230 volts 1 phase / 440 volts 3 phase.

  1. MANUAL GEAR REDUCTION SPEED CONTROL:

By mean of endless chain operation through of gear reductions to achieve

light and smooth operation. (chain block with galvanised chains)

  1. MANUAL SPRING COUNTER BALANCE TYPE:

Assembled from galvanised steel pulleys and high torsion carbon

steel spring elements with 38mm diameter steel pipes.

OPTIONAL FEATURES:

  1. Weather rubber seal for bottom bar
  2. Wireless remote control
  3. Safety edge auto stop device for bottom bar. (for motorised only) 4. POWDERCOATED service available upon request.

(STEEL & ALUMINIUM)
